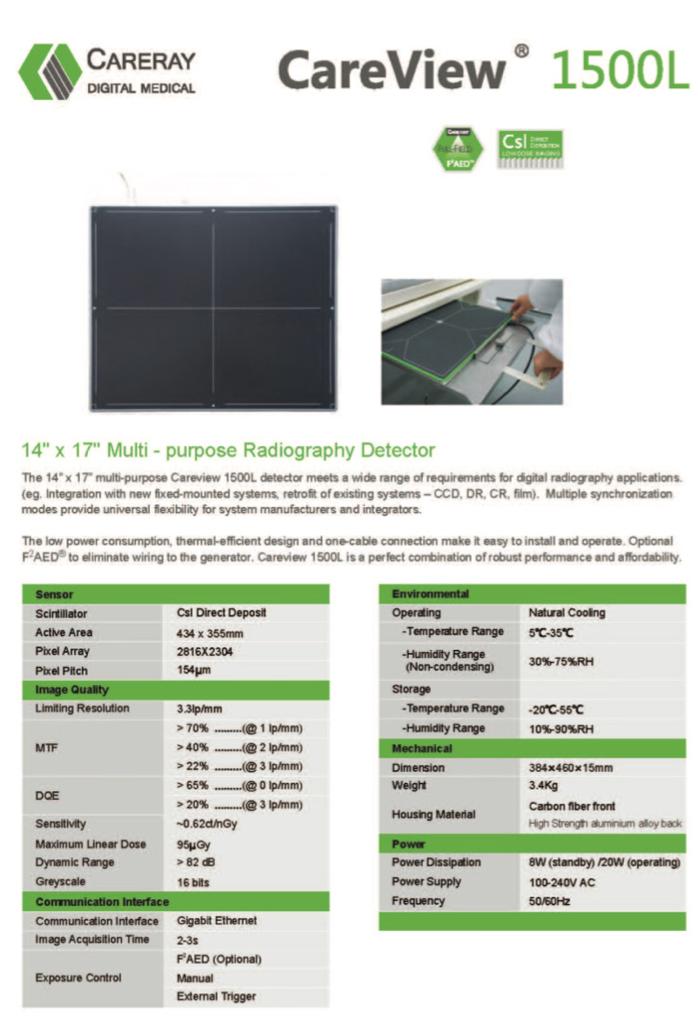

Radiography Detector

Radiography Detector

The most advanced direct deposit CsI technology ensures excellent image quality from this multi-purpose panel designed for a wide variety of digital radiography applications, including retrofit or new fixed mount systems. Multiple modes of synchronization provides flexibility for system manufacturers and integrators.



Thin design cassette made of high-strength, durable aluminum alloy and carbon fiber for years of reliable, trouble free operation. Unique Full-Field Automatic Exposure Detection offers full imaging area coverage.

Sensor :-

Scintillator Direct Deposit Cesium Iodide (CsI)
Active Area 43.37 x 35.48 cm
Pixel Array 2816 x 2304
Pixel Pitch 154 μm

Image Quality :-

Greyscale 16 bits
Limiting Resolution 3.3 lp/mm

Communication :-

Communication Interface Gigabit Ethernet
Image Acquisition Time 2-3 seconds
Exposure Control Full Field Automatic Exposure Detection (F2AED),
manual or external sync

Mechanical :-

Dimension 46 x 38.4 x 1.5 cm
Weight 3.4 Kg
Housing Material Carbon Fiber Front – High Strength Aluminum Alloy Back
Weight Capacity 150 Kg on surface area, 100 Kg on 4 cm circle
Operating Temperature Range 5-35 °C



Power :-

Supply 100-250V AC
Frequency 50/60 Hz
Consumption 20 W operating, 8 W standby
